VERTICAL FORMING SYSTEMS

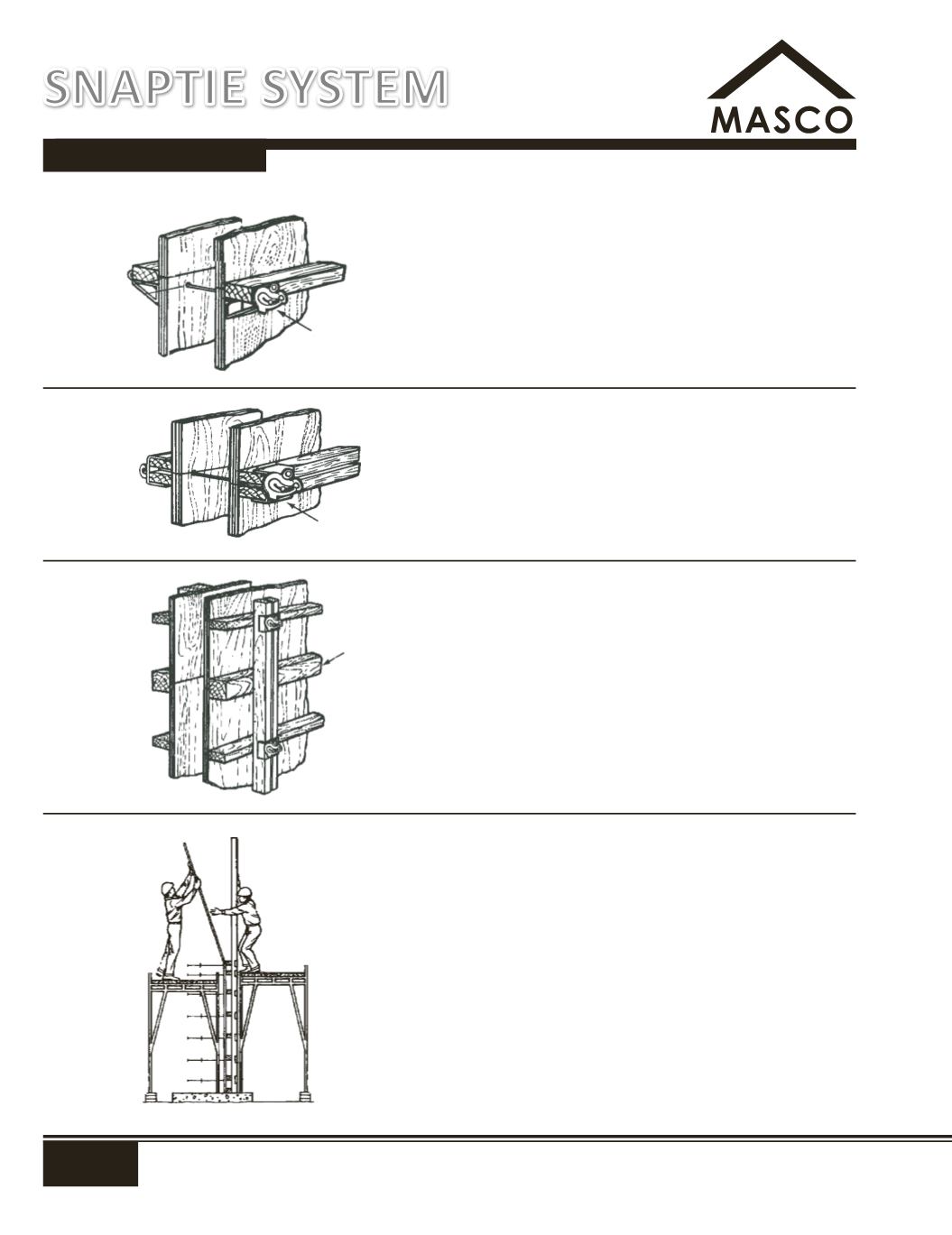

Joint Cover Details:
Alternate A
- Drill 9/16" diameter hole 1
1
/8" down from
top edge of the lower sheet of plywood. Install snap
tie, "A" Brackets and wale and then the upper sheet of
plywood. Nail the upper sheet of plywood to the wale.
Alternate B
- Install snap tie in the joint between the
panels. Add double wales and a "C" Bracket.
Alternate C
- Nail 4x4 wale to lower sheet of plywood,
hold the wale in place with strongbacks and add
upper sheet of plywood
Installation Of Second Lift Of Plywood:
Lift the plywood sheet and place it into position. Hold
the sheet in place with a short 2x4 spacing block,
snap tie and "C" Bracket placed toward the top of
the panel and nail the bottom of the sheet to the joint
cover wale.
Set additional panels by nailing them to the joint
cover wale and securing them to the previous panel
with a small wood cleat.
Install the snapties, brackets and wales - working
bottom to top.
Note: Snap ties are not designed to carry scaffold
bracket loads.
Alternate A
Jahn
®
Forming System (continued)
Single Wale and
"A" Brackets
Alternate A
Alternate C
4x4
Alternate C
Alternate B
Double Walesand
"C" Brackets
SNAPTIE SYSTEM
