VERTICAL FORMING SYSTEMS

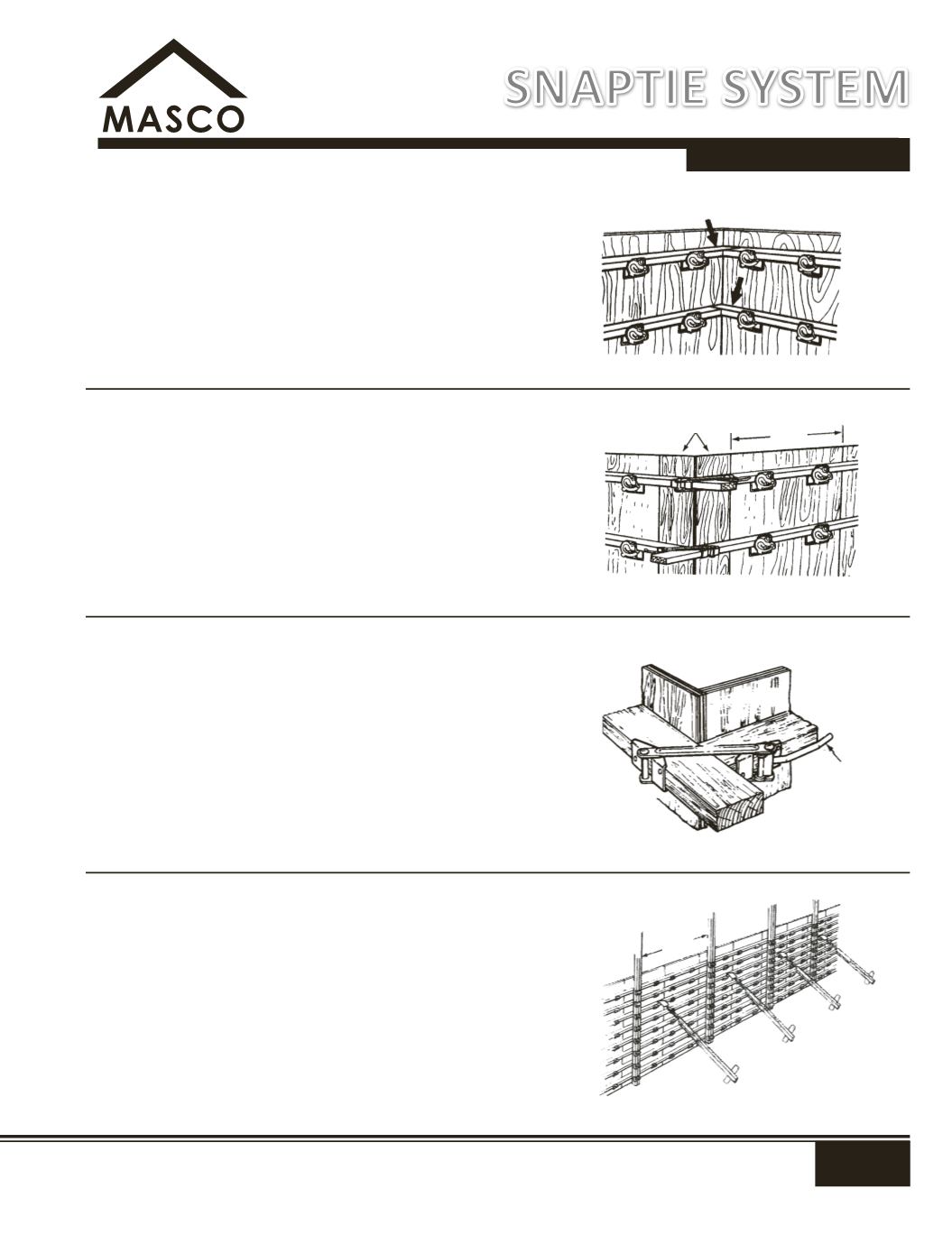

Inside Corner Forming:
No special treatment is required for inside corners other
than the alternating of the wales as shown in the sketch.
It is advantageous to start the inside corners with full size
plywood panels to facilitate forming the outside corners.
Outside Corner Forming:
Install the first outside panel in line with the first inside panel.
Filler panels, the same thickness as the wall plus the plywood
thickness, are then used to fill out the exterior corner.
Installation of Jahn Cornerlock:
The cornerlock eliminates costly overlapping and blocking of
the wales. Its cam action draws the wales securely together.
Place one wale flush at the corner and let the other extend
past the flush one. Slip the cornerlock into place with the handle
perpendicular to the wale. Nail the cornerlock in place and
rotate the handle 90° toward the wale. A snug, tight outside
corner is a accomplished.
Installation of Strongbacks:
Strongbacks are used to aid in form alignment and to tie
stacked panels together. Loose 2x4's are used in conjunction
with Jahn "C" Brackets and 8
1
/4" L&W snap ties or 4
3
/4" L&W
snap ties with the Jahn Tie Extenders to strongback the forms.
Normal strongback spacing is 8'-0" on center.
Jahn
®
Forming System (continued)
FILLER PANELS
4'-0"
HANDLE
8'-0"
TYPICAL
SNAPTIE SYSTEM
