350 Post Shore
SAF T552147
550 Post Shore
SAF T463087
Bearing
SAF T465410
Edge Support Bearing
SAF T487673
Post Shore Tripod
SAF T587377
DF Aluminum Erection Rod
SAF T443371
MAX. 350 CM
(11'-5" NOM.)
MAX. 550 CM
(18' NOM.)
37 CM
(14.5" NOM.)
37 CM
(14.5" NOM.)
T-SPRING BOLT
3.65 M
(12'-0")

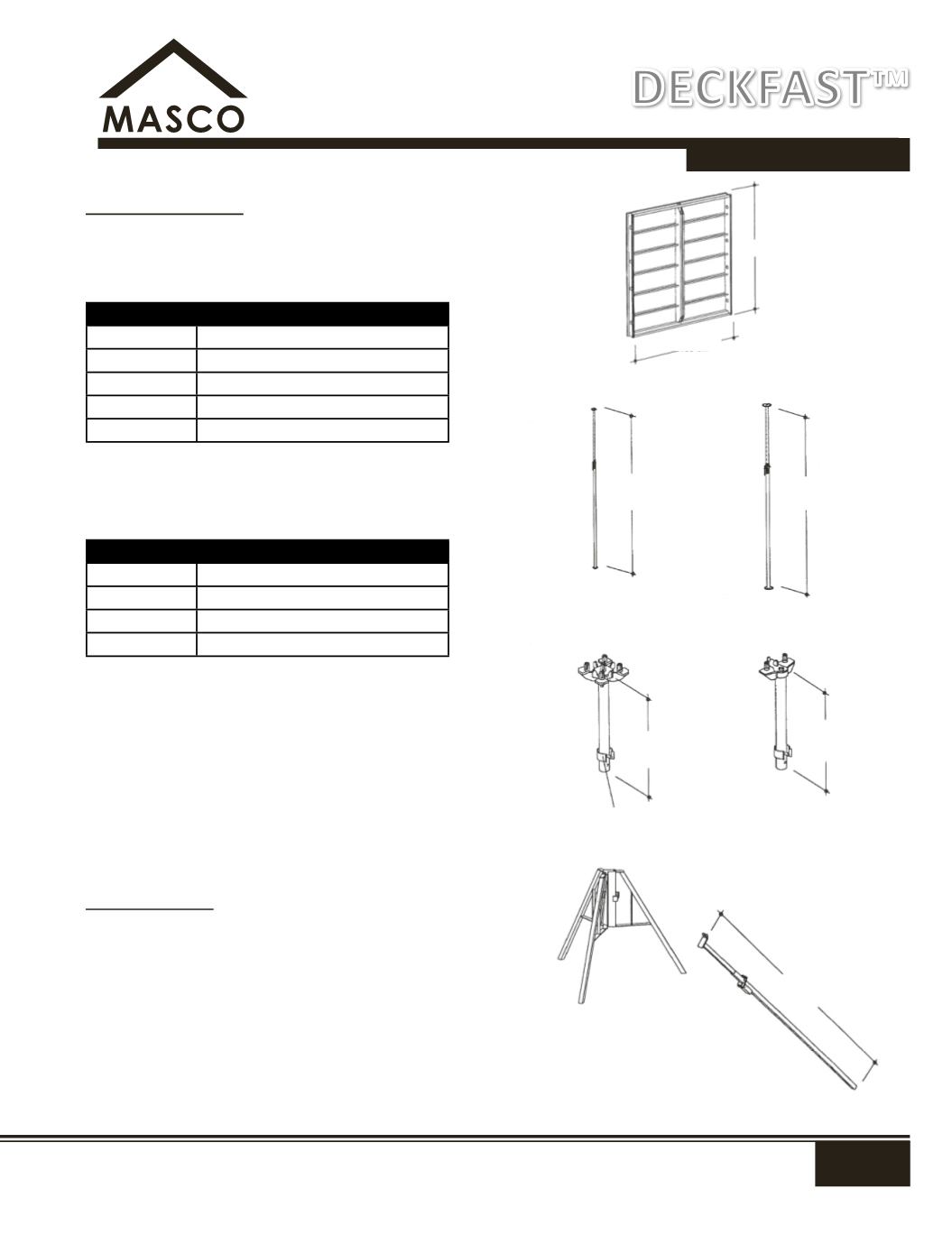

HORIZ. FORMING & SHORING
Basic Components
Panel
All panel frames are lightweight aluminum and are powder-
coated to reduce cleaning. Sizes include:
Post Shore
350 and 550 Post Shores are completely galvanized inside and
out including external threads. A built-in stop prevents removal
of inner tube.
All shores are complete with quick-release pins. One tap with
the hammer is usually enough to release the shore from its load.
Bearing
The support for the DeckFast Panels is inserted into the steel
shore and secured with an integrated T-Spring Bolt or Bearing
Retainer.
Edge Support Bearing
It is inserted into the shore like the DeckFast Bearing. The Edge
Support facilities flush connections of the DeckFast Panels along
side walls.
ASSEMBLY AIDS
Post Shore Tripod
The Post Shore Tripod is designed for steadying the 350 and 550
Post Shores during erection procedures (maximum 3" diameter
post).
The Hinged design accommodates all angular patters, such as
90°, 180°, and 360°.
DF Erection Rod
Facilitates the erection and disassembly of the DeckFast Panels.
For ceiling heights up to 3.65 m (12'-0" nom.) Adjustable in steps
of 5 cm (2").
No.
Size
SAF T554000 180 x 180 cm* (6' x 6' nominal)
SAF T548001 180 x 90 cm*
(6' x 3' nominal)
SAF T548012 180 x 75 cm* (6' x 2'-6" nominal)
SAF T548023 180 x 60 cm*
(6' x 2' nominal)
SAF T548034 180 x 45 cm*
(6' x 1'-6" nominal)
No.
Size
SAF T552147 350: L = 6'6" - 11'5" nominal
SAF T463087 550: L = 10'1" - 18' nominal
Inner tube diameter: 2.45" nominal
Outer tube diameter: 3" nominal
180 x 180 Panel
SAF T554000
180 CM
180 CM
DECKFAST™
