The HV decking system
provides a rapid, versatile and efficient
means of casting onsite concrete decks in a wide variety of applications.
Lightweight and easy to use, HV comprises just 3 main components and
can be erected and dismantled by a team of two operatives without the
need for special tools, making it one of the least labor intensive systems
on the market.
With all erection and dismantling undertaken from beneath the deck
itself, HV minimizes requirements for working at height and makes a major
contribution to site safety.
The system’s modular nature simplifies the entire process, naturally
creating a 1.8 m (6 ft.) grid that self-sets. This simplicity in use, combined
with the system’s drop-head, allows for early stripping and re-use of
beams and panels, thus enhancing site productivity while maintaining
automatic back propping.
Versatility is also a key feature of the HV; columns, wall corners,
curved walls and many other potentially problematic features can
be accommodated with ease by means of simple positioning and
adjustment of panels and infill beams.
Features and Benefits
Lightweight components facilitate rapid erection and dismantling
Enhances safety on site
Minimizes labor requirements and costs
Self-sets to save time
Early stripping maximizes equipment re-use
Single panel with GRP synthetic cover
Continual back-propping improves productivity
HV Components
The HV panel decking system comprises 4 main components:
1. HV Prop
2. Drop Head
3. Primary Beams
4. Secondary Beams
HV-Prop
HV-Prop up to 10 ft. extension
HV-MAXI Prop up to 14 ft. extension
Drop-head
Hot dip galvanized steel
Fixed to prop with 2 speed thread bolts
Fast stripping by cam action mechanism
No special tools – hammer only required for stripping

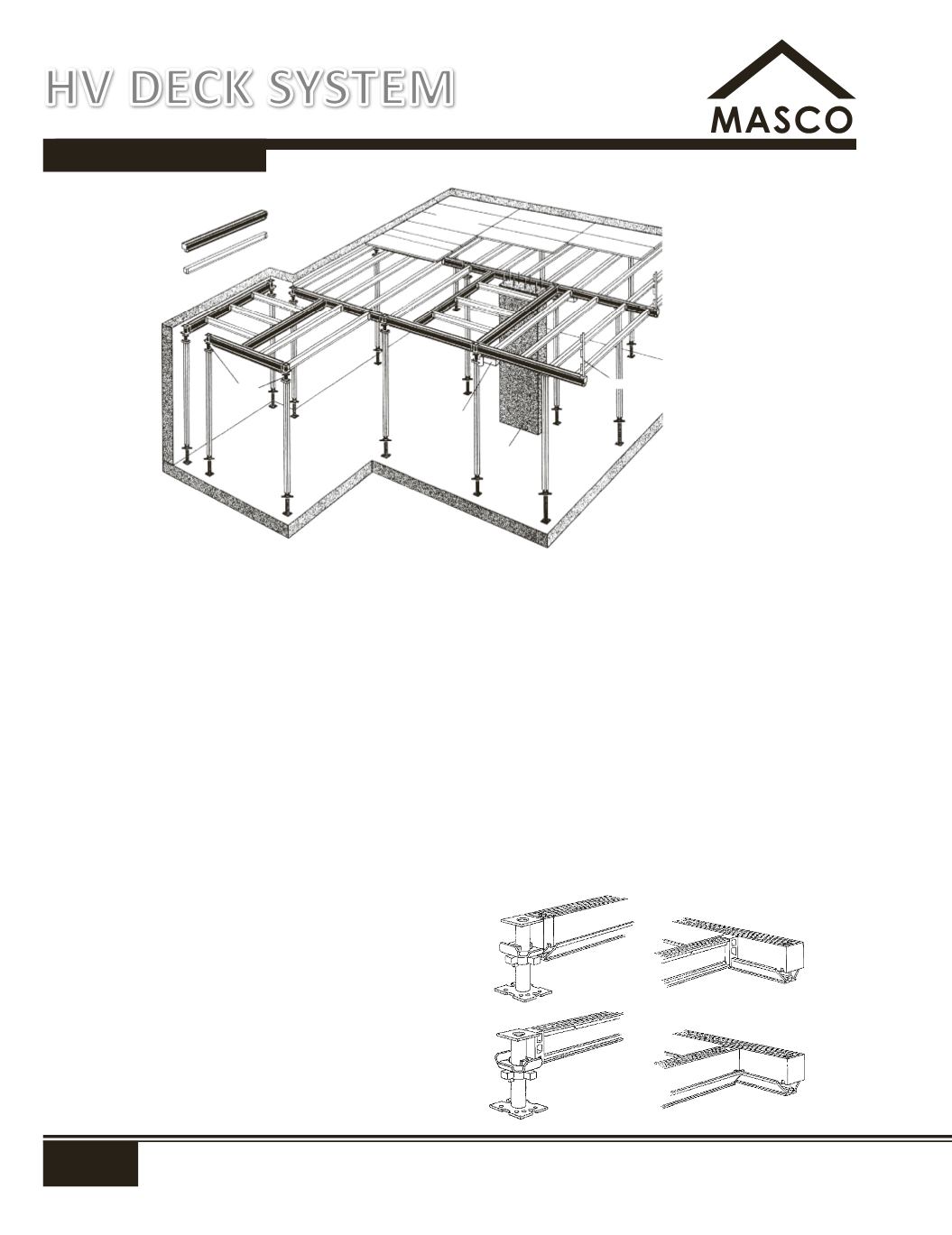

Primary and Secondary Beam
Lightweight, high strength aluminum
Durable construction
Easy, fast and safe handling
Main and Secondary Beam
Flexibility with Main and Secondary Beams
Main Beams 2.40 m (8 ft.); 1.80 m (6 ft.) and 1.15 m (4 ft.)
Secondary Beams 1.80 m (6 ft.) and 1.15 m (4 ft.)
The same colors are on the beams for easy identification.
•
•
•
•
•
•
•
•
Main beam in
drop head
Secondary
beam in drop
head
Secondary
beam in main
beam
Main beam in
main beam
•
