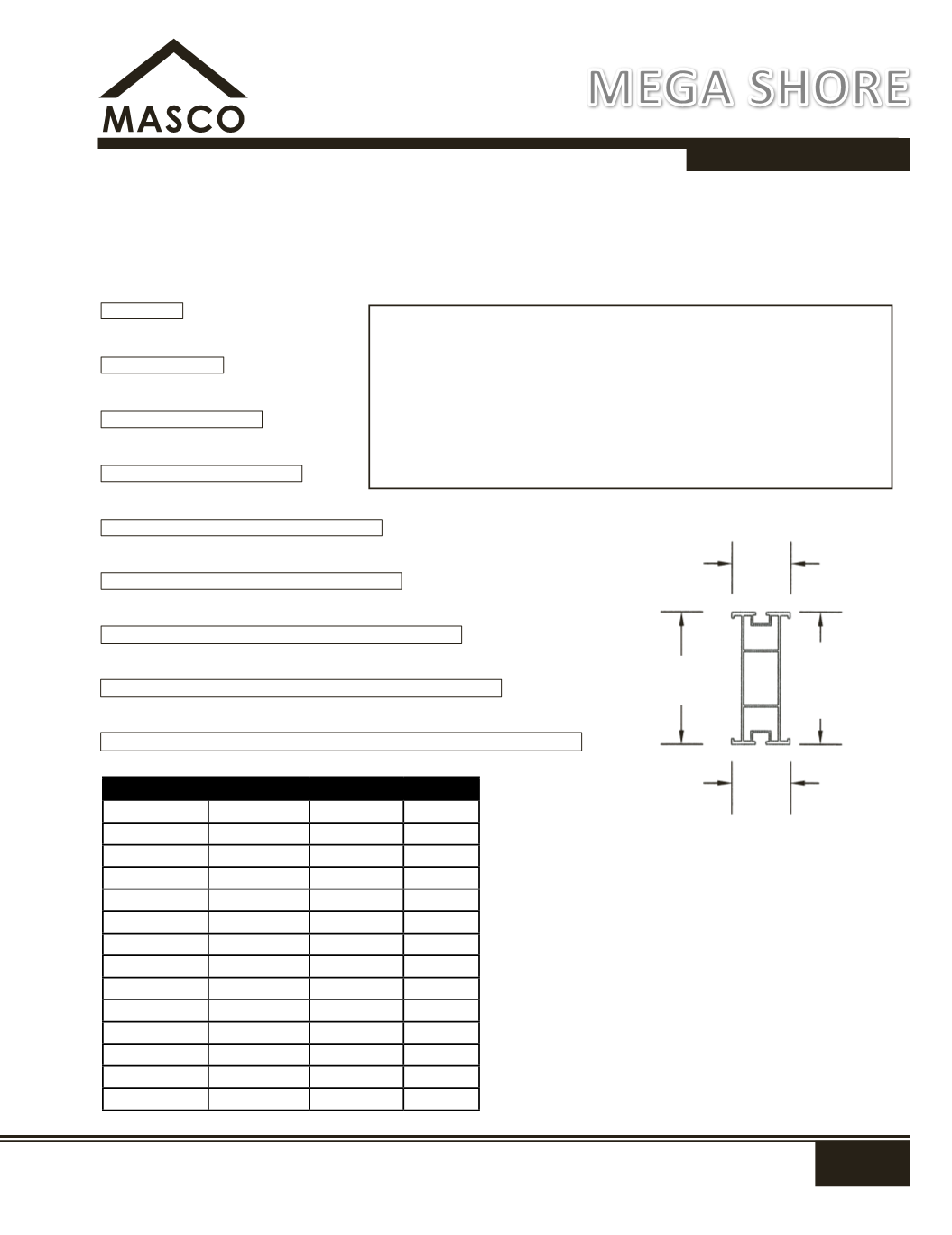

225 Stringer Beams
The Aluminum 225 Stringer Beam has extraordinary load
capacities because of its unique design with 3 hollow profiles.
No. Description Length Wt (lbs)
ICS 4120 L =120cm 3'-11 ¼" 22.5
ICS 4180 L=180cm 5'-10 ⅞" 28.1
ICS 4240 L=240cm 7'-10 ½" 45.0
ICS 4300 L=300cm 9'-10 ⅛" 56.2
ICS 4340 L=340cm 11'-2" 63.7
ICS 4380 L=380cm 12'-5½" 71.2
ICS 4420 L=420cm 13'-9 ⅜" 78.7
ICS 4450 L=450cm 14'-9 ⅜" 84.3
ICS 4480 L=480cm 15'-9" 90.0
ICS 4500 L=500cm 16'-4⅞" 93.7
ICS 4540 L=540cm 17'-8 ⅝" 101.2
ICS 4600 L=600cm 19'-8 ¼" 112.5
ICS 4720 L=720cm 23'-7 ½" 135.0
ICS 4750 L=750cm 24'-75/16" 140.6
Area
Ixx Moment of Inertia 32.63 cm2 5,057 in2
Zxx Section Modulus 2,241.00 cm4 54.0 in4
E Modulus of Elasticity 199.20 cm3 12.16 in3
E.I. Bending Stiffness 68,900.00 N/mm2 9,799,883 lbs/in2
M Resistence Moment 1,544.00 KN/m2 31,623 lbs/ft2
S Allowable Shear Force 28.50 KNm 21,020 lb/ft
89.00 Kn 20,000 lbs
Weight 8.87 Kg/M 5.94 lbs/ft
3.9"
10cm
8.9"
22.5cm
HORIZ. FORMING & SHORING
120
180
240
300
420
450
540
600
720
MEGA SHORE
