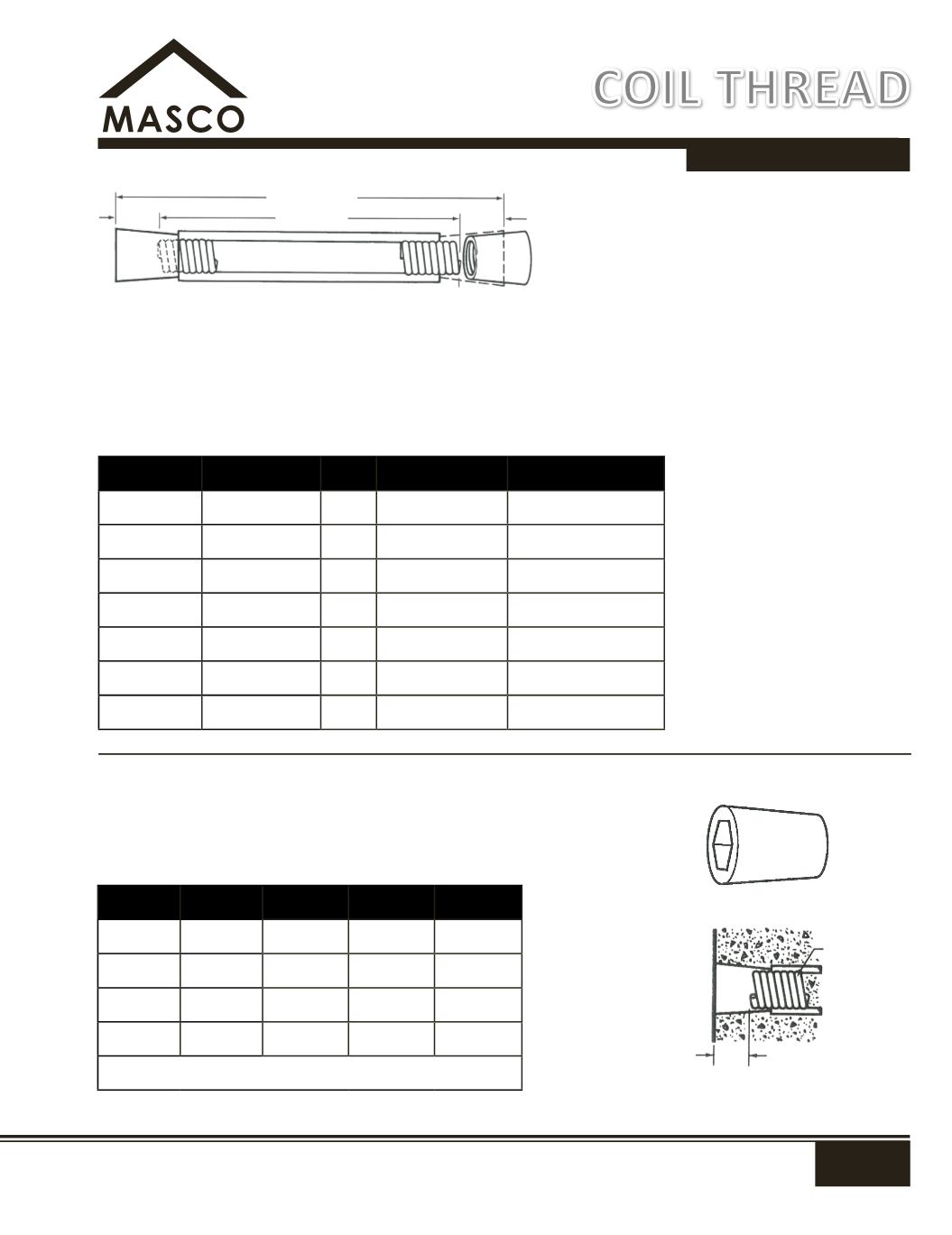

Screw-On Coil Tie
The Screw-On Coil Tie is designed to be attached to the first erected side of the
form. This system is ideally suited for forming heavily reinforced walls as it eliminates
the "fishing" of ties through a form, reinforcing steel and the opposite side form.
Once the closure form is set in place, it is easy to install the remaining coil bolts and
hardware. When the screw-on cones are attached to the coil tie, they provide
a positive setback for the tie and act as a fixed internal form spreader. To order
specify bolt diameter, safe working load, tie length, wall thickness and set back.
No.
Size
Strut
SWL Tension (lbs)
Wt (lbs)
1/2" Standard
2
4,500
1/2" Heavy
2
6,750
3/4" Standard
2
6,750
3/4" Heavy
2
9,000
1" Standard
2
13,500
1" Standard
4
18,000
1-1/4 Standard 4
27,000
SWL provides a factor of safety of approximately 2 to 1.
WALL THICKNESS
TIE LENGTH
SETBACK
SETBACK
Screw-On Cone
Screw-On Cones are threaded internally with coil threads in
the small end of the cone. It is threaded onto the extended
ends of the screw-on coil tie and cannot be knocked off
the tie. Use a cone removal wrench to back the cone off
the tie and out of the concrete. Plastic cones are reusable.
No.
Bolt
Size
Setback Wt/Lf (lbs)
DS 35151 1/2"
1-1/4"
1"
0.05
DS 35135 3/4"
1-5/8"
1"
0.07
DS 35138 1"
2-1/8"
2"
0.17
DS 35139 1-1/4"
2-3/8"
2"
0.19
Other sizes available on request.
