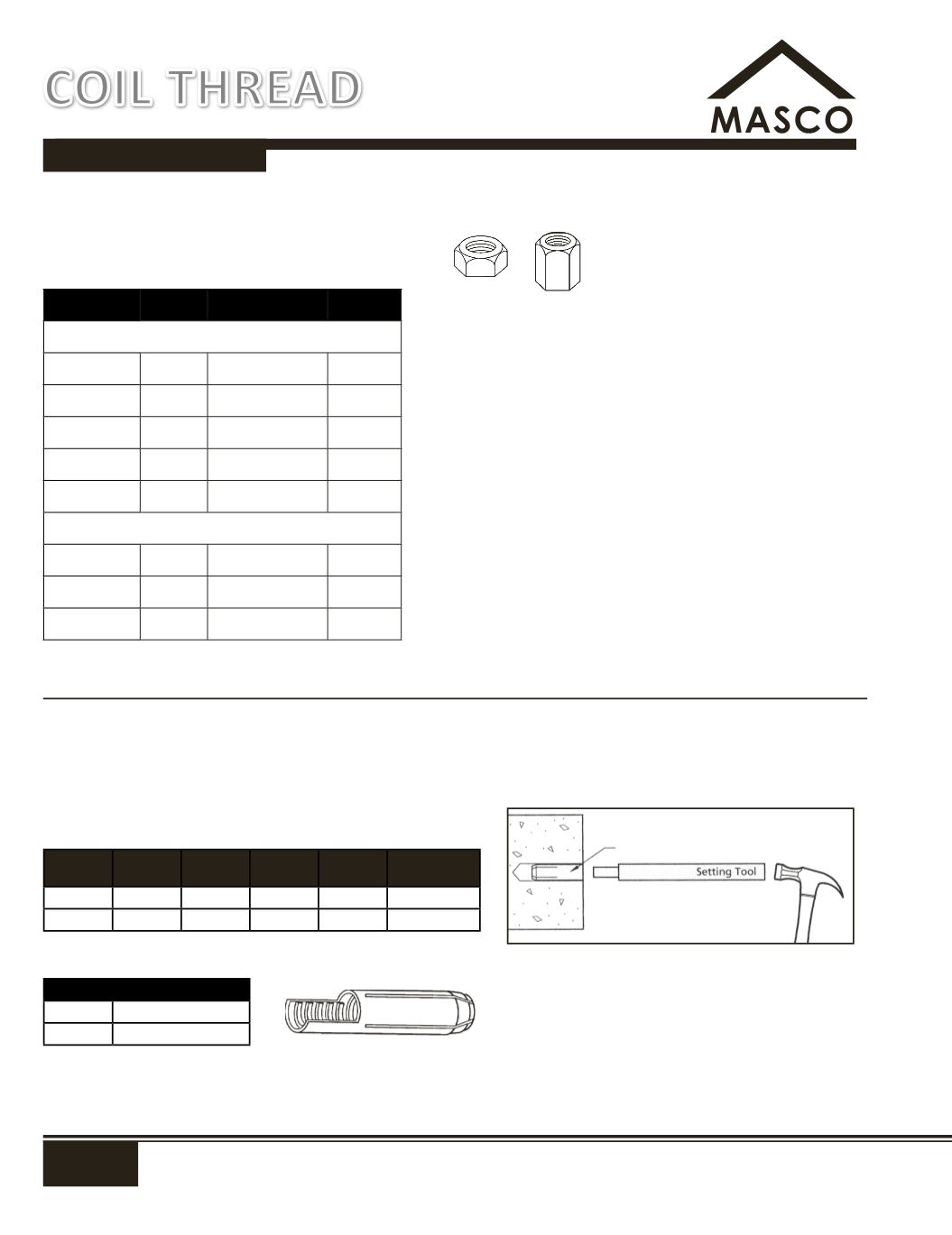

TIEING/HANDSET
HOLE MUST BE CLEANED OF DUST AND OTHER MATERIAL
DROP-IN ANCHOR
Coil Nut
Hex shaped coil nuts are available for all sizes of coil rod.
2 standard or 1 heavy nut is required to develop full
strength of high tensile coil rod.
HD
STD
No.
Size
SWL Tension (lbs)
Wt (lbs)
Regular
RC 12CN
1/2"
6,000
0.06
RC 34CN
3/4"
9,000
0.19
RC 1CN
1"
18,000
0.41
RC 114CN 1-1/4"
27,000
0.76
RC 112CN 1-1/2"
40,500
1.19
Heavy Duty
DS B2512
1/2"
9,000
0.19
DS B2534
3/4"
18,000
0.26
DS B251
1"
37,500
0.72
Coil Bolts
Coil bolts are designed to be reusable, but they do wear and must
be continuously inspected and replaced when wear or damage is
noted. A waterproof grease should be applied to the portion of the
bolt that will be embedded in the concrete. This will facilitate bolt
removal from the set concrete.
SWL provides a factor of safety of approximately 2 to 1.
Coil Thread Dropin
An all-steel, coil thread bolt anchor available in carbon
steel. It can be used in solid concrete and hard stone for for
forming applications. Internally threaded anchor for easy
removability and service work.
No.
Size Overall
Length
Thread
Depth Qty/Ctn Wt/Ctn (lbs)
RL 6330
1/2"
2"
13/16"
50
12
RL 6332
3/4"
3-3/16"
1-3/8"
10
48
No.
Size
RL 6309
1/2"
RL 6313
3/4"
Setting Tools
COIL THREAD
