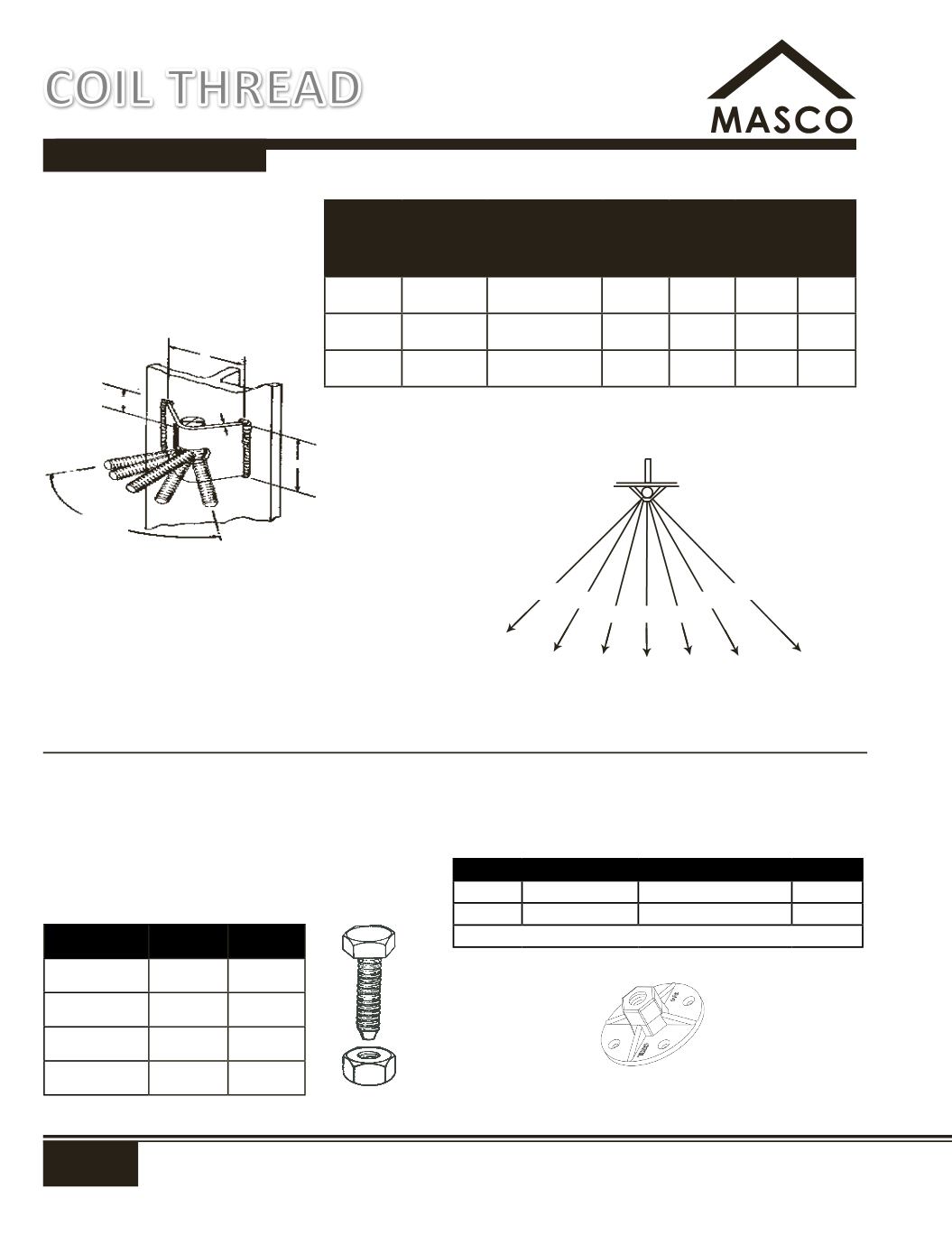

TIEING/HANDSET
Nut Washer
Coil nut washers are available with 3/4" acme or coil thread
diameters. Made of ductile iron, the nut washer is designed
to take the place of a loose hex nut and flat washer.
No.
Size
SWL Tension (lbs)
Wt (lbs)
DS 31348 3/4" Acme
9,000
1.30
DS 31346
3/4" Coil
9,000
1.30
Other sizes available on request.
Speed Bolt & Nut
Special fitting up bolts and nuts are used for securing
steel form panels together. The tapered nose of the
bolt acts as a draft pin and helps align the forms.
The thread design and clearances between the nut
and bolt permits quick assembly and dismantling of
the forms. The open thread design permits concrete
to be easily knocked out of the threads.
LOAD REDUCTION FACTORS
Contact our technical service department for load
reduction factors for angles other than those shown.
WARNING!
When angle loads are placed on the weld angle bracket the SWL
must be reduced as shown. If the SWL is not reduced, greater loads
than expected will be applied thereby reducing the factor of safety.
No.
Size
Wt (lbs)
SY 32191
3/4" x 2"
0.50
SY 32195
3/4" x 3"
0.60
SY 32194
3/4" x 4"
0.70
SY 32193
3/4" NUT
0.30
110 DEGREE
MAX
ADJUSTMENT
A
C
B
D
SWL provides a factor of safety of approximately 2 to 1.
.70 x SWL
.86 x SWL
.96 x SWL
1.0 x SWL
.96 x SWL
.86 x SWL .70 x SWL
45
O
30
O
15
O
0
O
45
O
30
O
15
O
COIL THREAD
No.
COIL
THREAD
DIAMETER
MAXIMUM
SAFE WORKING
LOAD
TENSION (LBS)
A
B
C
D
DS D2412
1/2"
9,000
5-5/16"
2-9/32"
4"
1/4"
DS D2434
3/4"
18,000
5-5/16"
2-9/32"
4"
1/4"
DS D241
1"
31,500
5"
2-1/8"
5-3/4"
1/2"
Angle Tie Bracket
This bracket offers a full 110 degree
movement 55 degrees in either
direction. Designed to eliminate the
unsafe practice of field bending of
coil rod or bolts. Masons assumes no
liability for the welded connection.
