Grommet Body
EPDM Rubber
304 Stainless
Steel Fender
Washer
304 Stainless
Steel Hex Nut
1/4 x 20
304 Stainless
Steel Bolt
Xylan Coated
Compression Set
1
¾
" x
¼
" x 20
TIEING/HANDSET

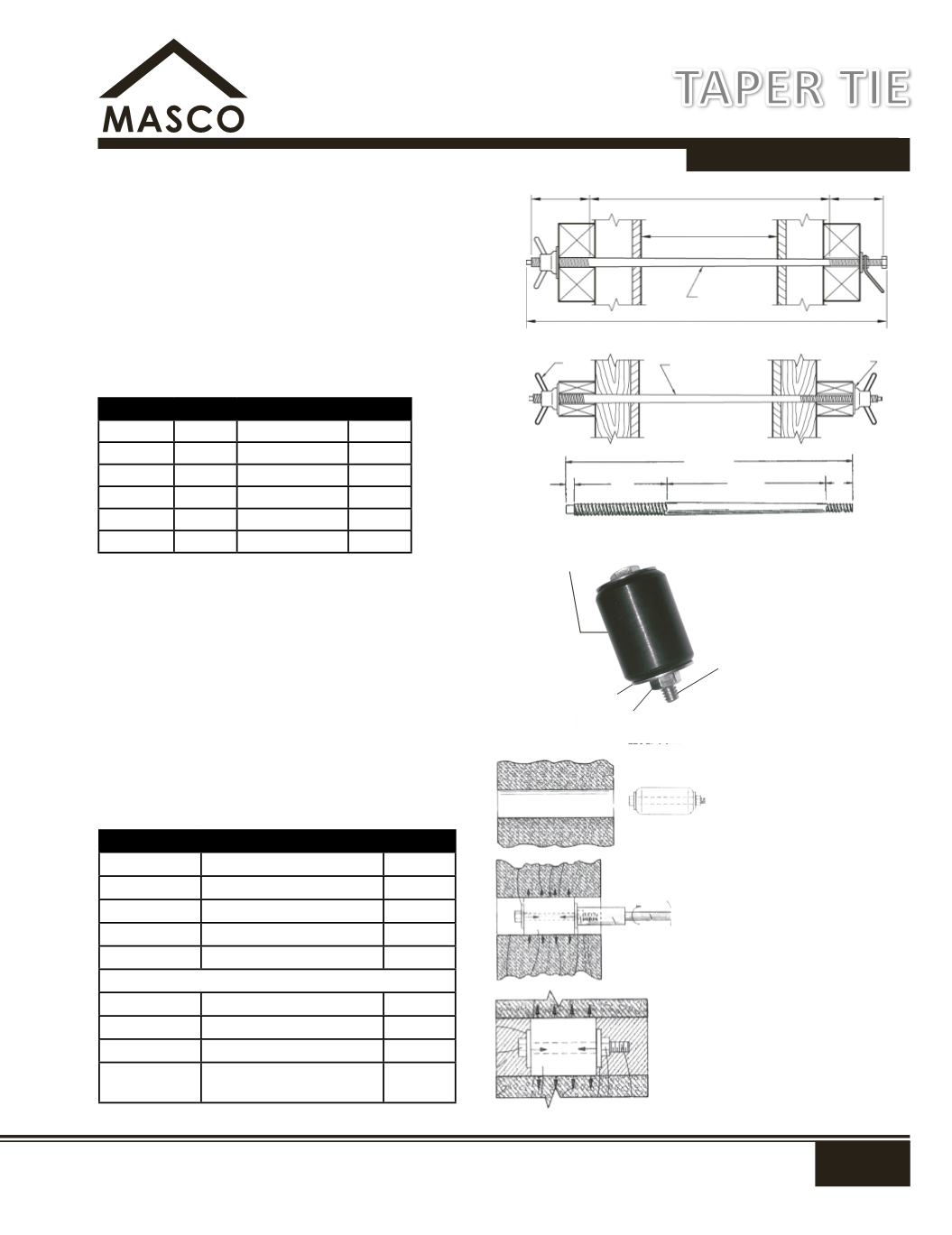

Taper Tie
The 1" to 1-1/4" taper tie system is a versatile forming
system which is completely reusable, no expandable parts
are left behind in the hardened concrete. Features quick
assembly and fast stripping. Feed-through installation
permits both side forms to be in place before ties are
installed. Available in various lengths with 1-1/4"diameter x
10" exterior coil thread on the larger end with 1" diameter
x 6" coil thread on the small end. Use with bearing washer
and cast wing nut. Taper Ties should be coated with a
white lithium grease before inserting into form and should
be removed with a wrench. SWL 34,000 lbs.
No.
Size Tapered Length Wt (lbs)
CFT TT35
35"
17"
10.0
CFT TT42
42"
24"
12.0
CFT TT45
45"
27"
13.0
CFT TT48
48"
30"
14.0
CFT TT55
55"
37"
16.0
CFT TT60
60"
42"
25.0
TAPER-TIE
WASHER
WING
NUT
TAPER LENGTH
WALL THICKNESS
TAPER-TIE
OVERALL TAPER-TIE LENGTH
TIE LENGTH
TAPER
10"
6"
1"
X-Plug
A mechanical plug specifically designed to seal the
void formed in a concrete wall by the removal of a
tie rod. The X-Plug is easily engaged into the tie rod
void during ALL climates. With its mechanical design,
tightening of the metal nut causes an expansion of the
plug, increasing its diameter inside the tie rod void. This
action simultaneously compresses the main body plug
onto the bolt to create an unmatchable seal between
the plug and the wall of the tie rod void. Designed to
install at 50% of wall thickness for varying tie sizes. Can
also be set for shallow depth plug placement. Able
to be installed interior/exterior or retro-fitted to repair
leaks. Can also be utilized as backing for grouting.
Materials:
EPDM
Hardware:
304 Stainless Steel
No.
Taper Tie Size
Wt (lbs)
XP 5834
⅝" - ¾"
0.10
XP 5878
⅝" - ⅞"
0.10
XP 341
¾
" - 1"
0.11
XP 1114
1" - 1¼"
0.11
XP 4112
1¼" - 1½"
0.15
Accessories
XP BRU341 Brush for ⅝" - 1" Hole 6 oz.
XP BRU1114 Brush for 1" - 1
¼
" Hole 6 oz.
XP BRU4112 Brush for 1
¼
" - 1
½
" Hole 6 oz.
XP EXT1512 X-Plug 15" Installation
Extension Socket
1.50
Step 1:
Clear tie hole of all
loose debris. Taper tie brush
is available upon request.
Step 2:
Check plug
engagement, making
sure plug is slightly less
in size than void. Minor
adjustments can be made
by simply tightening nut for
shallow depth placement.
Step 3:
Attach deep well
socket and extension onto
nut. Place plug at desired
depth or specification.
FULLY TIGHTEN NUT.
Step 4:
Once nut has been
fully tightened pull socket/
extension out of void. THAT'S
IT! Move on to the next void
and repeat. Fill with grout if
needed.
SWL provides a factor of safety of approximately 2 to 1.
