TIEING/HANDSET
SWL provides a factor of safety of approximately 2 to 1.
B
A
D
C

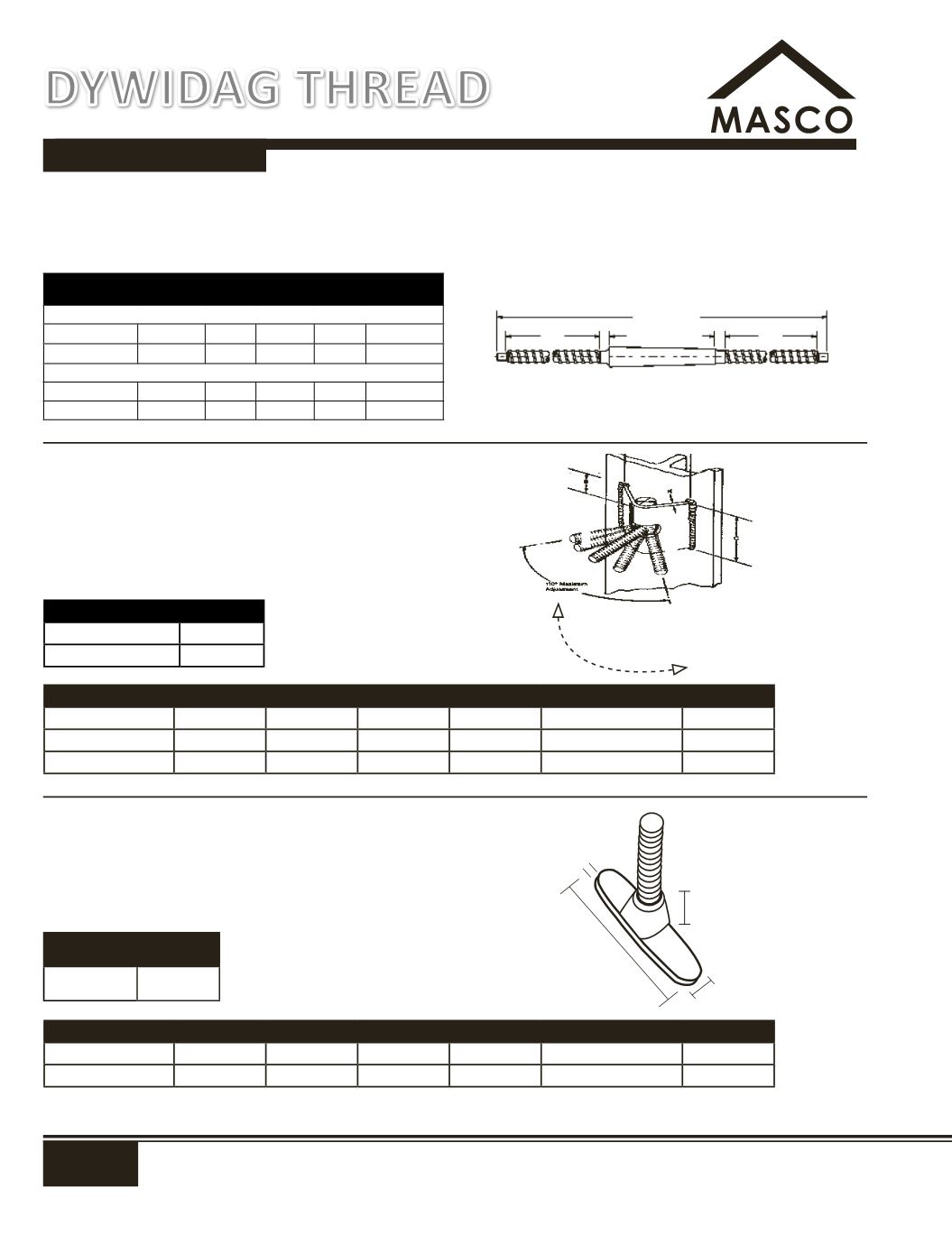

Welded Angle Bracket
Manufactured from high strength steel. Strengths are
determined on full fillet welds along bracket. The threaded pin
swivels up to ± 45°. The welded angle bracket is mainly used
on H-piles below grade for one-sided forming applications.
Masons assumes no liability for the welding connection.
See
technical bulletin for SWL reduction factor information.
Rod Diameter
A
B
C
D
SWL Tension (lbs)
Wt (lbs)
in.
in.
in.
in.
in.
klps
lbs.
5/8
5.25
4
.25
2
19.1
4.0
7/8
7
6
.50
2
39.2
8.5
No.
Size
DSI 58AB
5/8"
DSI 78AB
7/8"
DYWIDAG Taper Tie
Taper Ties employ one piece all steel tapering. This results in a
stronger, much lighter system that uses the same size hardware
at each end.
No.
Size
Size
Taper L
Size
Overall L Wt (lbs) SWL
Tension (lbs)
7/8"
DSI B20F28230
1-1/4" to 1" 30"
51"
12.0
32,500
DSI B20F28236
1-1/4" to 1" 36"
57"
13.5
32,500
5/8"
SY 722125
3/4" to 5/8" 24"
49"
5.0
18,400
SY 722104
3/4" to 5/8" 16"
41"
4.0
18,400
Overall Length
Taper Length
Welded Neck Flange
Offers an economical solution for one sided forming of steel
where angle tying is not required. The strengths listed on the
chart were determined based on a 1/4″ fillet weld completely
around the base of the Neck Flange.
Masons assumes no
liability for this welded connection.
No.
Size
DSI
5/8″
Rod Diameter
A
B
C
D
SWL Tension (lbs)
Wt (lbs)
in.
in.
in.
in.
in.
klps
lbs.
5/8
1.18
5.12
0.47
1.96
21.9
4.0
D
C
A
B
DYWIDAG THREAD
