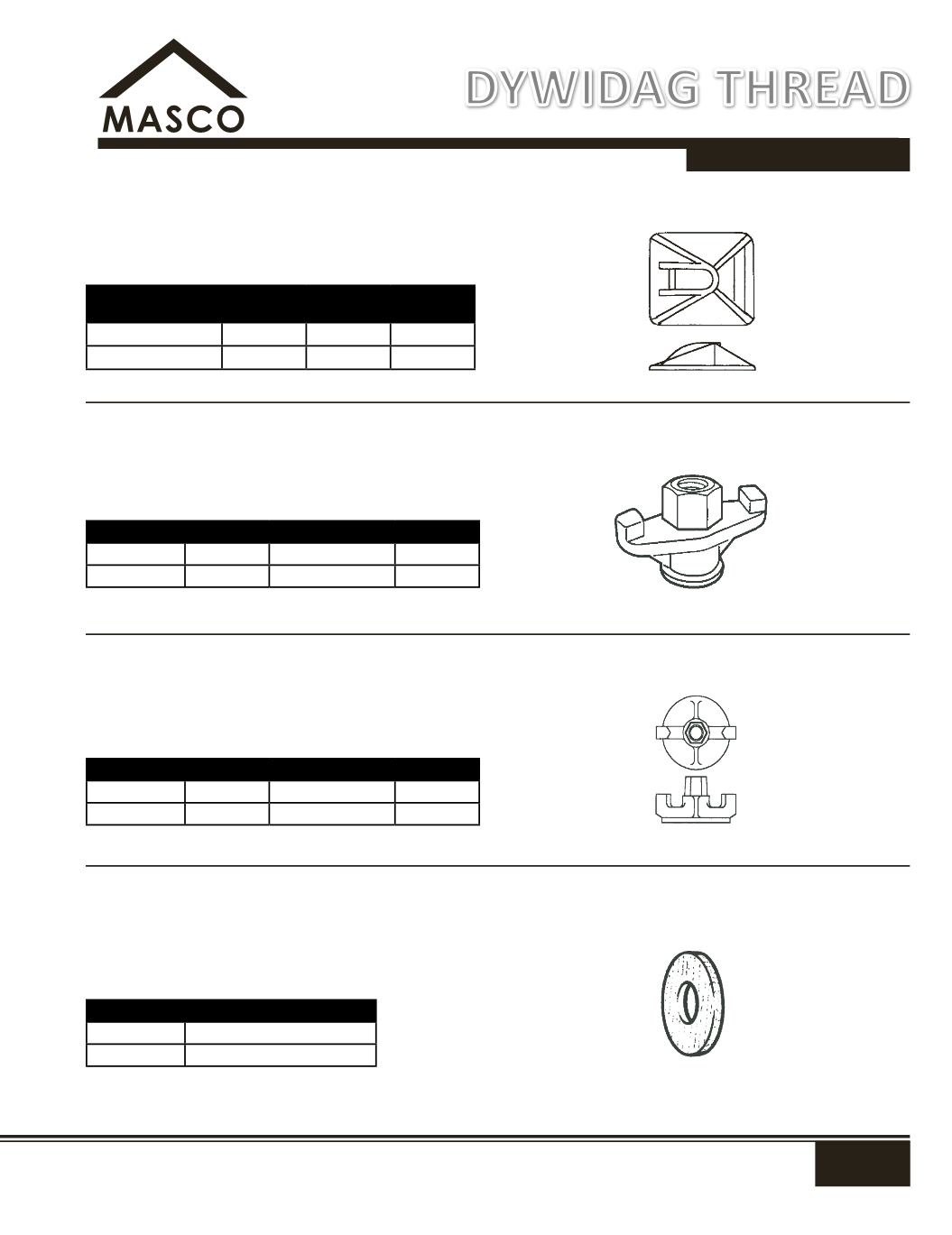

Cast Wing Nut
Fabricated from ductile steel. Fast threaded for quick
assembly and stripping. Utilized when frequent removal
and application of nut is required.
Wing Nut Bracket
Fabricated from ductile steel. Wing nut and plate are
together as one piece unit. Maximum spacing between
strongbacks should not exceed rod diameter plus 1/4".
Batter Washer
Used when walers are at an angle to the tips. Permits
any angle from 90° to 45°. Maximum spacing between
strongbacks should not exceed rod diameter plus 1/4".
Waterseal Washer
Neoprene Waterseal Washers may be installed on inside
tie rods to help eliminate water seepage along the tie.
Generally specified when ties are used to form water
containment structures.
SWL provides a factor of safety of approximately 2 to 1.
No.
Rod
Diameter
Size
Wt (lbs)
DSI 58BW
5/8"
5"x 3-1/2"
1.80
DSI 78BW
7/8"
6"x 5-1/4"
4.00
No.
Size
SWL Tension (lbs) Wt (lbs)
DSI 58WN 5/8"
19,100
0.60
DSI 78WN 7/8"
39,200
1.00
No.
Size
SWL Tension (lbs) Wt (lbs)
DSI 58WNB 5/8"
19,100
1.10
DSI 78WNB 7/8"
39,200
2.80
No.
Inside Tie Rod Diameter
DSI 58WW 5/8"
DSI 78WW 7/8"
