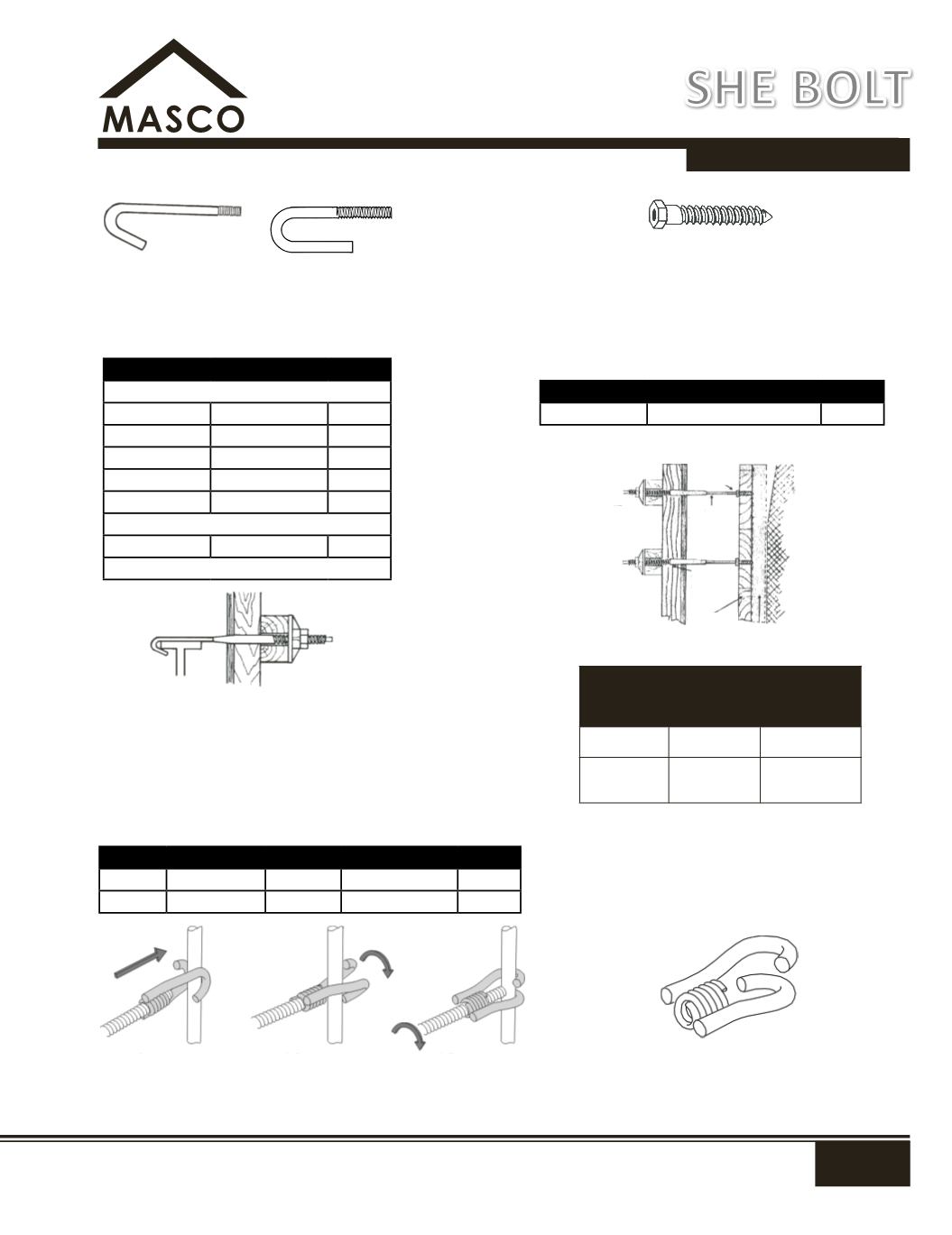

Coil Rebar Hooks
Fabricated from mild steel in standard
1/2" NC and coil diameters. Threaded one
end and die formed into a sturdy hook.
Lengths are net. SWL is 800 lbs in tension.
Tapped Lag Bolt
Simplifies blind wall forming, speeds concrete pours
and reduces external bracing. Fast installation. Drill
9/16" pilot hole in lagging, screw bolt, tapped with ½"
diameter thread, into wood lagging. Install ½" N.C.
threaded rod and she bolt assembly.
* QUALITY OF LUMBER WILL EFFECT STRENGTH.
TREATED
TIMBER SIZE
PILOT HOLE
SIZE
SWL
TENSIONS
(LBS)
2" x 10"
9/16"
1,575 LBS*
3-3/4" or
4" x 12"
9/16"
2,820 LBS*
No.
Description
Wt (lbs)
J Hooks
DS 122JBOLT
1/2" NC x 2"
0.17
DS 123JBOLT
1/2" NC x 3"
0.20
DS 124JBOLT
1/2" NC x 4"
0.25
DS 124CJBOLT 1/2" COIL x 4"
0.25
DS 126CJBOLT 1/2" COIL x 6"
0.32
U Hooks
DS 124CUBOLT 1/2" COIL x 4"
0.25
Other sizes available on request.
No.
Size
Wt (lbs)
DD TLB
3/4" x 5" x 1/2" N.C. inner
0.51
Rebar Hook
A multipurpose coupler for making a fast field connection
between coil rod and rebar. A simple "push and twist" action
is all that is needed to make the connection; the coil rod itself
keeps the Rebar Hook in place on the rebar. Fits in tight spaces:
little clearance around rebar needed for attachment. Connects
anywhere along length of rebar. Welded to rigorous standards
using computer-controlled equipment. Use with Transition Ties™
for Stay-Form
®
blindside walls. 100 Pieces per carton.
One of the most common uses, shown below, is using the Rebar Hook with a Steel Dog Transition Tie to make a low-cost, adjustable-
length tie for forming Stay-Form blindside walls with a variety of different handset form panels.
SWL provides a factor of safety of approximately 2 to 1.
½"
THREADED
ROD
TAPPED
¾
"
LAG BOLT
WALER ROD
ASSEMBLY
WOOD
LAGGING
STEEL PILING
REBAR HOOK
3. TIGHTEN COIL ROD
2. TWIST HOOK
1. PUSH ONTO REBAR
No.
Coil Rod Size Rebar
SWL Tension (lbs) Wt (lbs)
SD RH6 1/2"
up to #6 1,800
.40
SD RH8 3/4"
up to #8 3,000
.88
SHE BOLT
TIEING/HANDSET
U Hook
J Hook
