TIEING/HANDSET

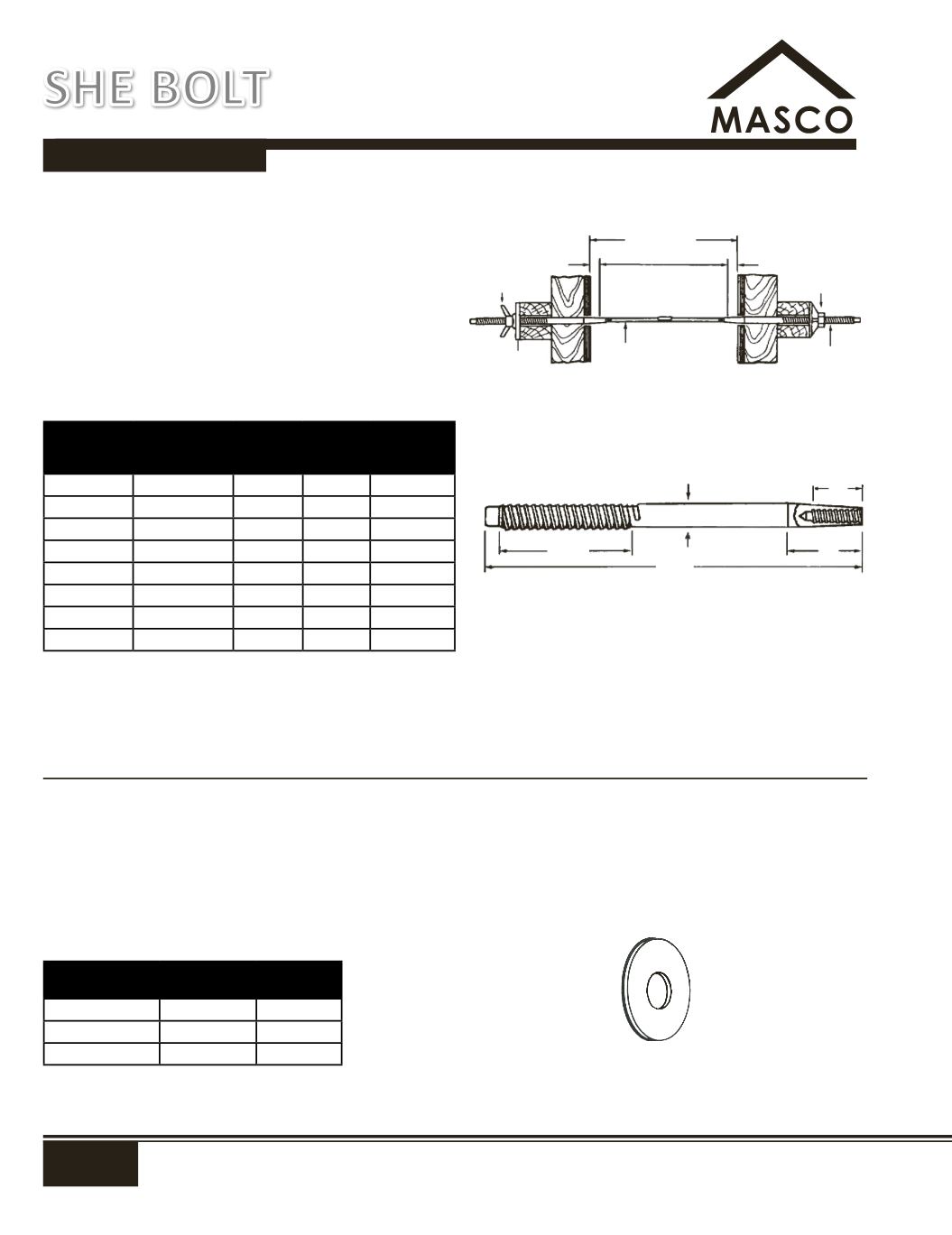

She Bolt
The she bolt tie system is one of the most versatile form
hardware systems produced for use with large "crane
handled" or "ganged forms." Using a bearing washer and
wing nut on the threaded external end of the she-bolt
allows this system to be used on a wide range of different
formwork thickness. Inexpensive expendable inside tie rods
are used, allowing the bolt assembly to be passed through
the forms after both form sides have been set in place. She
Bolts should be coated with white lithium grease before
inserting into form and should be removed with a wrench.
Waterseal Washer
Neoprene waterseal washers may
be installed on inside tie rods to help
eliminate water seepage along the tie.
Generally specified when ties are used to
form water containment structures.
SWL provides a factor of safety of approximately 2 to 1.
WALL THICKNESS
SETBACK
SETBACK
WING NUT
FLAT WASHER
INSIDE TIE ROD
SHE BOLT
NUT WASHER
INSIDE TIE ROD LENGTH
STANDARD LENGTHS
D
10"
2"
4"
TAPERED NOSE
L
No.
Size
Inner
*SWL
Tension
(lbs)
Wt (lbs)
CFT SB17NC 17"x ¾" ACME ½" NC 6,300
1.75
CFT SB17C 17"x¾" COIL ½" COIL
9,000
1.75
CFT SB20C 20"x¾" COIL ½" COIL
9,000
2.10
CFT SB24C 24" x
¾
" COIL
½
" COIL
9,000
7.0
CFT SB20
20"x1¼" COIL ¾" COIL
18,000
5.60
CFT SB24
24"x1¼" COIL ¾" COIL
18,000
7.00
CFT SB30
30"x1¼" COIL ¾" COIL
18,000
9.10
CFT SB36
36"x1¼" COIL ¾" COIL
18,000
12.00
Other sizes available on request.
*SWL is based on using 1/2" high tensile N/C rod, 1/2" or 3/4"
high tensile coil rod.
No.
Inside Rod
Diameter
Wt (lbs)
DS D3312
½
"
DS D3334
¾
"
DS D331
1"
SHE BOLT
