TIEING/HANDSET
Coil Bolt
Coil bolts are designed with fast-threading, self-cleaning threads.
The threads are contoured to mate with the helix coils of coil ties
and coil loops. Coil bolts may be furnished with standard formed
head or made from coil rod with heavy hex nut welded on.
Available in 3/4", 1", 1-1/4" and 1-1/2" diameter.
Fiberglass Coil Rod
No.
Size Length SWL Tension (lbs)
RC 12FCR
1/2"
8'
7,500
RC 34FCR
3/4"
8'
15,000
RC 1FCR
1"
8'
17,000
Forged Head Coil Bolt Data & Minimum Coil Penetration:
1/2" DIAMETER
1/2" DIAMETER
3/4" DIAMETER
1" DIAMETER
1-1/4" DIAMETER
1-1/2" DIAMETER
UNDER 6" LENGTH
SAFE WORKING LOAD
6" AND OVER LENGTH
SAFE WORKING LOAD SAFE WORKING LOAD SAFE WORKING LOAD SAFE WORKING LOAD
SAFE WORKING LOAD
TENSION SHEAR
4,125 2,750
TENSION SHEAR
6,750 4,500
TENSION SHEAR
9,000 6,000
TENSION SHEAR
18,000 12,000
TENSION SHEAR
27,000 18,000
TENSION SHEAR
41,250 27,500
MINIMUM COIL
PENETRATION 2"
MINIMUM COIL
PENETRATION 2"
MINIMUM COIL
PENETRATION 2-1/4"
MINIMUM COIL
PENETRATION 2-1/2"
MINIMUM COIL
PENETRATION 2-1/2"
MINIMUM COIL
PENETRATION 3"
THREADS PER INCH 6
THREADS PER INCH 6
THREADS PER INCH 4.5 THREADS PER INCH 3.5
THREADS PER INCH 3.5
THREADS PER INCH 3.5
MIN. ROOT AREA
SQUARE INCHES .1385
MIN. ROOT AREA
SQUARE INCHES .1385
MIN. ROOT AREA
SQUARE INCHES .3080
MIN ROOT AREA
SQUARE INCHES .5410
MIN ROOT AREA
SQUARE INCHES .9160
MIN ROOT AREA
SQUARE INCHES 1.3890

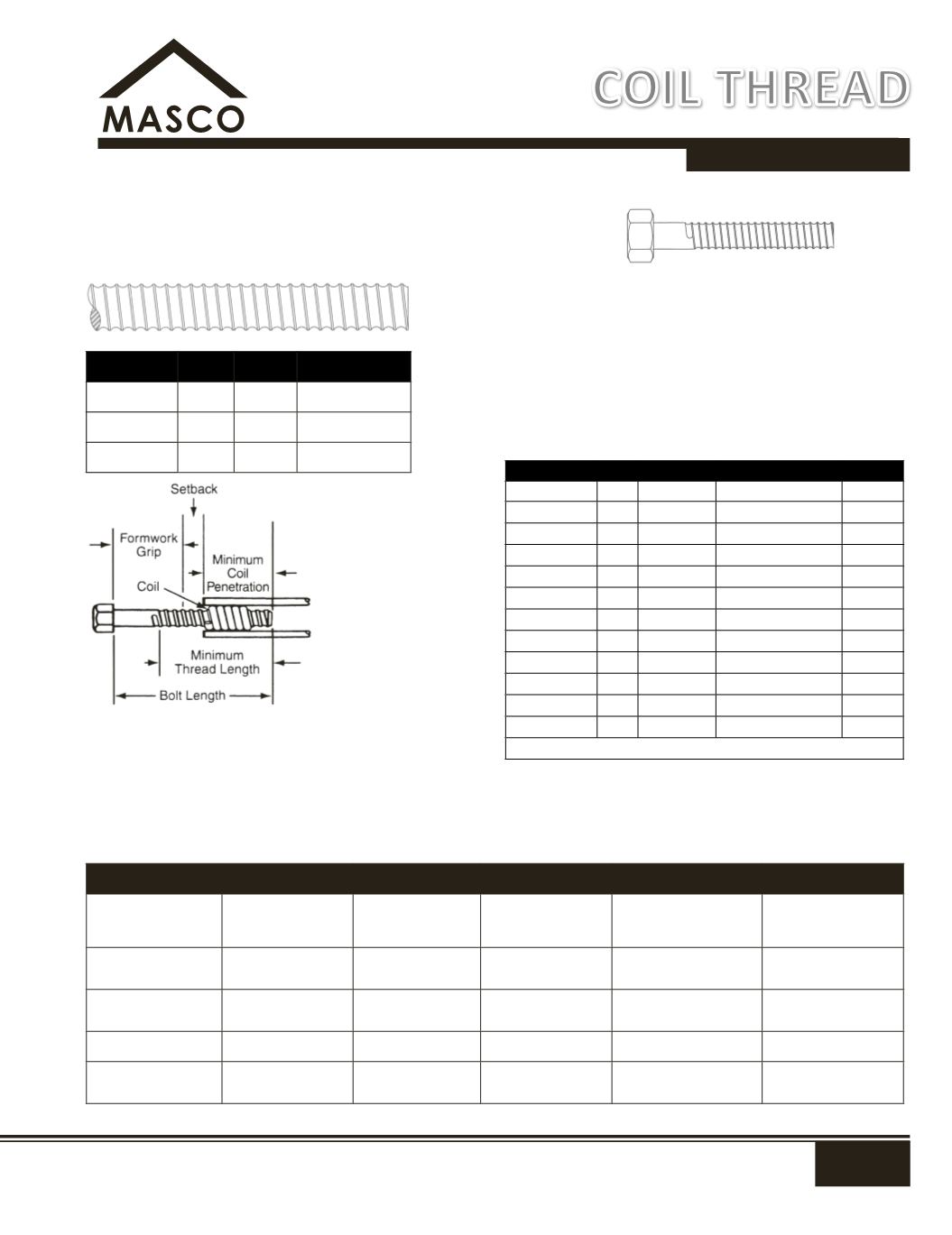

Minimum Coil Penetration Information
When determining the minimum required overall length of
coil bolts, you must consider the following items:
- Formwork grip (including washer thickness).
- Setback of the form tie or insert.
- Minimum coil penetration (applies to all coil products).
COIL THREAD
No.
Size Bolt Length Min. Thread Length Wt (lbs)
DS 12212CB 1/2" 2-1/2"
2-1/4"
0.150
DS 122CB 1/2" 2"
1-3/4"
0.120
DS 123CB 1/2" 3"
2-1/4"
0.175
DS 12312CB 1/2" 3-1/2"
2-1/2"
0.200
DS 124CB 1/2" 4"
3-1/4"
0.230
DS 125CB 1/2" 5"
4-1/4"
0.285
DS 126CB 1/2" 6"
5"
0.340
DS 343CB 3/4" 3"
2-3/4"
0.430
DS 34312CB 3/4" 3-1/2"
3"
0.490
DS 344CB 3/4" 4"
3-3/4"
0.550
DS 345CB 3/4" 5"
4-3/4"
0.670
DS 346CB 3/4" 6"
5-3/4"
0.780
1" & 1-1/4" & 1-1/2" coil bolts also available.
COIL BOLTS ARE NEVER TO BE TIGHTENED
USING AN IMPACT WRENCH.
SWL provides a factor of safety of approximately 2 to 1.
