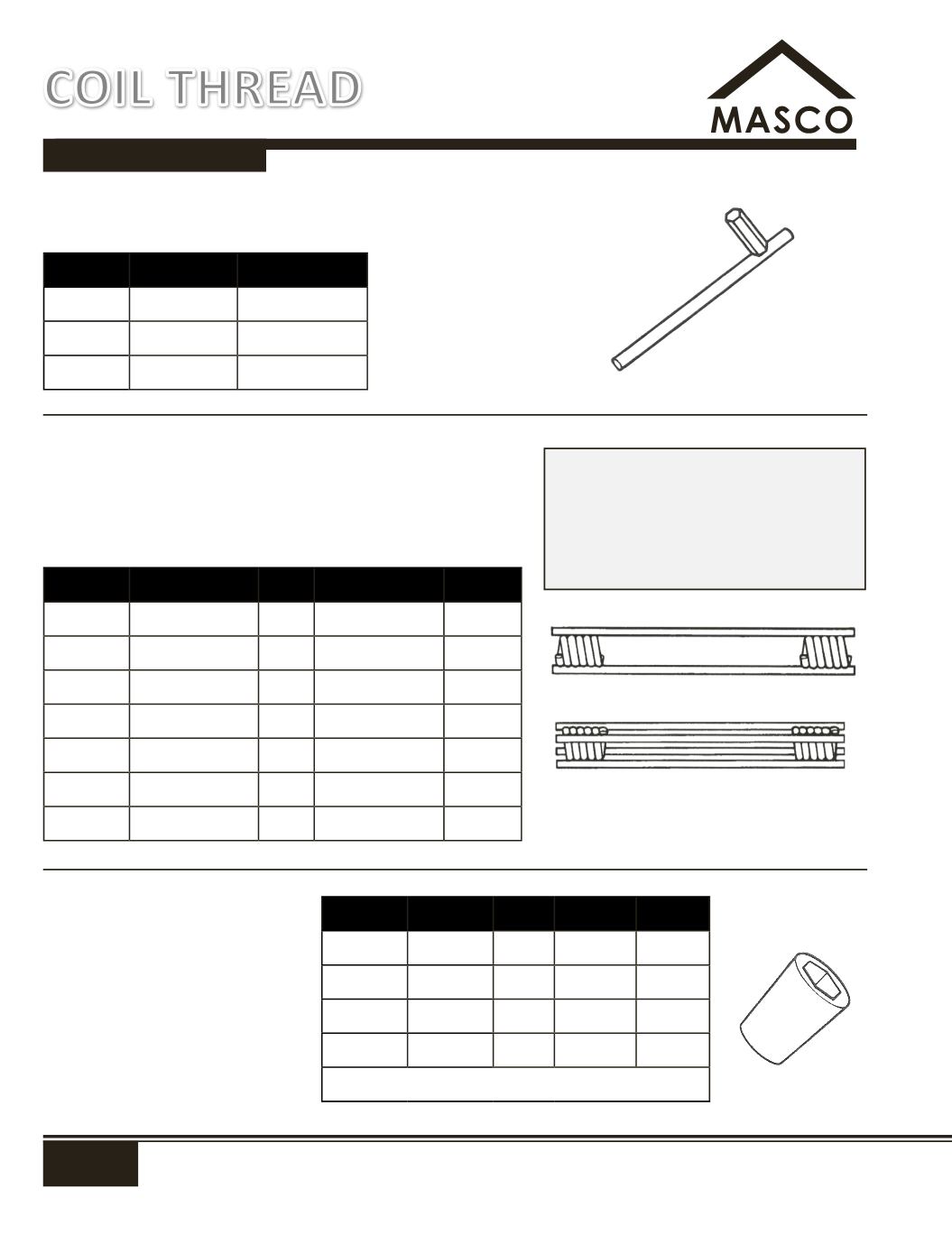

Cone Wrench
Plastic cone removal wrench removes 1/2",
3/4", and 1" plastic cones.
No.
Size
Wt (lbs)
DS 66705 1/2"
1.60
DS 66706 3/4"
1.90
DS 66707 1"
2.40
TIEING/HANDSET
Coil Tie
Coil Tie Couplers are available in 1/2", 3/4", 1" and 1-1/4" diameters.
All couplers are 2 strut or 4 strut electrically welded to standard
length coil. An Advantage that a coil tie coupler has over closed
couplers is that it can be ordered in varying lengths depending on
your application. To order specify bolt diameter, safe working load,
tie length, wall thickness and set back.
No.
Size
Strut
SWL Tension (lbs)
Wt (lbs)
1/2" Standard
2
4,500
1/2" Heavy
2
6,750
3/4" Standard
2
6,750
3/4" Heavy
2
9,000
1" Standard
2
13,500
1" Standard
4
18,000
1-1/4" Standard 4
27,000
Loose Cone
Loose cones are placed over the
coil bolt after the bolts have been
placed thorugh the formwork and
before the bolt is threaded into the
coil tie or coil anchor. The large end
provides a sufficient bearing surface
to prevent damage of the plywood.
Plastic cones can be reused. Plastic
cones are removed with the cone
removal wrench.
No.
Bolt
Size Setback Wt (lbs)
DS 35121 1/2"
1-1/4"
1"
0.04
DS 35125 3/4"
1-5/8"
1"
0.06
DS 35128 1"
2-1/8"
2-1/2"
0.19
DS 35129 1-1/4"
2-3/8"
2-1/2"
0.19
Other sizes available on request.
To Order:
Specify: (1) quantity, (2) name, (3) safe working
load, (4) bolt diameter, (5) tie length,
(6) wall thickness, (7) setback.
Example:
3,000 pcs. Standard 2 Strut Coil Tie, 4,500 lbs. SWL,
1/2" diameter, 12" long for a 14" wall, 1" setback.
SWL provides a factor of safety of approximately 2 to 1.
